Description
The Monitors.com MEDKVM-8142 is a professional 2-port Quad-Monitor DisplayPort 1.4 EDID KVM Switch built for medical imaging, diagnostic reading rooms, and other high-performance multi-display environments. It enables two workstations to share four DisplayPort monitors, along with a single keyboard, mouse, keypad, dictation microphone, audio device, and USB peripherals.
Supporting DisplayPort 1.4 with resolutions up to 8K at 60Hz, the MEDKVM-8142 delivers exceptional image quality while preserving accurate display performance for high-resolution diagnostic monitors. Advanced EDID management, HDR, Display Stream Compression (DSC), MST Pass-Through, and high refresh rate support ensure reliable compatibility across modern professional graphics workstations. With front-panel buttons and keyboard hotkeys for instant switching, the MEDKVM-8142 streamlines workflow while minimizing desktop clutter. Compatible with Windows, macOS, Linux, and ChromeOS, it has been validated with Barco, EIZO, LG, JVC, and ASUS medical displays and professional GPUs including Barco MXRT/MXRV, NVIDIA RTX, and AMD Radeon Pro
Quad-Monitor DisplayPort 1.4 EDID KVM Switch
Designed for modern PACS reading rooms, the MEDKVM-8142 allows two computers to share four diagnostic displays while maintaining the full performance of DisplayPort 1.4. Supporting resolutions up to 8K @ 60Hz and 4K @ 120Hz, it delivers the bandwidth required for radiology, mammography, pathology, and other image-intensive medical applications without compromising image quality or responsiveness.
Connect Two Workstations to One Reading Station
The MEDKVM-8142 simplifies dual-workstation environments by allowing radiologists and clinicians to control two independent computers using a single console consisting of four monitors, one keyboard, one mouse, one keypad, shared USB devices, speakers, and a dictation microphone. Switching between workstations is instant using dedicated front-panel buttons or keyboard hotkeys, helping improve workflow efficiency while reducing desktop complexity.
Optimized for Medical Imaging Workflows
Engineered specifically for healthcare environments, the MEDKVM-8142 supports medical displays ranging from 3MP to 32MP, making it ideal for radiology, mammography, pathology, cardiology, and advanced diagnostic imaging. Automatic and manual EDID scanning helps maintain proper monitor recognition and optimal display settings, while HDR, DSC, widescreen support, and MST Pass-Through ensure excellent visual performance across high-resolution medical displays.
Share Your Dictation Microphone and USB Devices
The MEDKVM-8142 enables shared access to essential peripherals including a USB keyboard, mouse, Hologic keypad, dictation microphone, speakers, and USB 3.2 devices between two connected workstations. Dedicated USB HID ports support keyboard hotkeys for quick switching, while high-speed USB 3.2 (10Gbps) ports allow USB peripherals to follow the selected computer for a clean, efficient workspace.
Compact Design with Enterprise-Class Connectivity

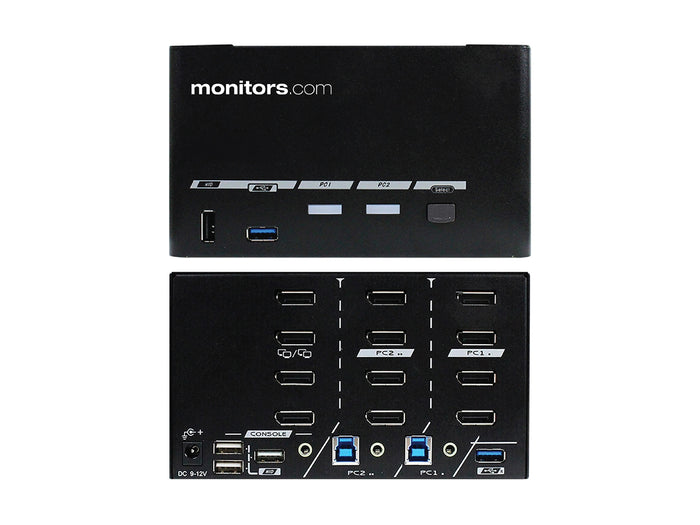

Housed in a durable metal chassis measuring 160 × 100 × 100 mm (W × D × H), the MEDKVM-8142 provides professional-grade connectivity without occupying valuable desk space. The rear panel includes eight DisplayPort 1.4 inputs, four DisplayPort outputs, dual USB 3.2 computer connections, USB HID console ports, USB 3.2 peripheral sharing ports, audio input/output, and a DC 12V power connection, making installation simple and organized.
Features
- Allows 2 PCs share 4 monitors at 8K (32MP) Per Monitor
- Supports Video Resolution Up to 8K @ 60Hz
- 2 Ways switch Methods: Keyboard HotKey and Dedicated KVM Front Button
- Connect up to 4 USB Device to KVM to Switch between 2 PCs
- Supports 3MP, 4MP, 5MP, 6MP and 12MP and 32MP Medical Displays
- Supports HDR / Wide Screen / High Frame Rate / FreeSync & DSC / MST Pass Through
- Auto & Manual EDID Scan Function, Scan Time Selectable
- No Software & Drivers Required
- Support Windows, MAC, Linux, Chrome O.S
- Connect Kyeboard, Mouse, Dictation Mic, Keypad to KVM & Switch between 2 PCs
- Compatible with Barco MXRT, MXRV, Nvidia RTX and AMD RadeonPro GPUs
- Validated on Barco, Eizo, LG, JVC and ASUS Medical Displays
