Description

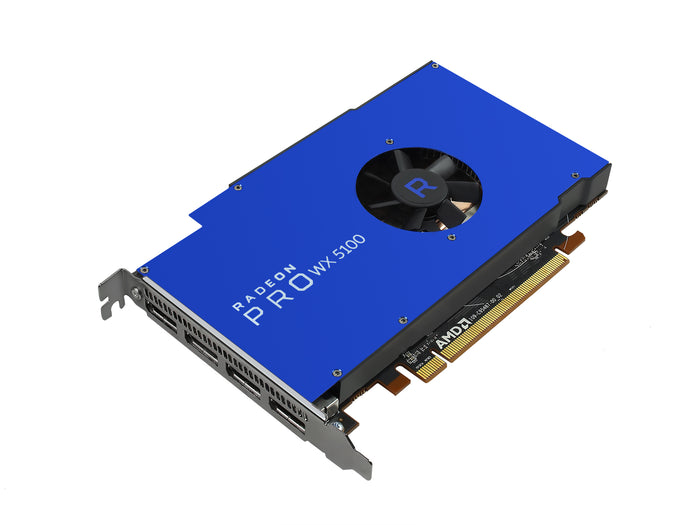

The WX 5100 is a power-efficient GPU, consuming only 75 watts of power and enclosed in a single-slot, half-length chassis. Featuring 1792 stream processors linked to 8GB of GDDR5 vRAM with a 160 GB/s interface for 3.9 TFLOPS of single-precision computation performance, the Radeon Pro WX 5100 also supports APIs such as OpenCL, OpenGL, and Vulkan so you can take advantage of that performance and accelerate graphics rendering and computationally intensive video effects.
Simultaneously drive two dual-cable 5K (5120 x 2880) displays up to 60 Hz with the processing power of the WX 5100. Utilizing four DisplayPort 1.3 outputs, four monitors can be driven at DCI and UHD 4K resolutions, expanding your virtual workspace without requiring splitters or MST hubs.
AMD’s blower-style cooler, using a radial fan, helps keep the card cool. This system forces air over the components, exhausting it out through the front of the card, an ideal cooling solution for compact configurations with tight spacing between components.
10-Bit Color
The native 10-bit support of the monitor assists color-critical tasks such as video color correction since it provides a larger visible gamut. However, in order to make use of this feature, you must have a display that supports these higher bitrates and inputs for accurate rendering.
DirectGMA and SDI Support
Reduces CPU bandwidth and latency, between GPUs within a system by optimizing communication with third-party devices like SDI I/O cards. DirectGMA doesn't require data to traverse the host's main memory resulting in high throughputs, low latencies for sharing information.
Encoding/decoding hardware
With specially programmed hardware, the GPU can encode and decode H.265 video files for a faster render time and smooth playback of highly compressed videos.
PowerTune
PowerTune is a GPU, power management technology that provides direct control over the GPUs clock speed. PowerTune dynamically adjusts to operate within the user-defined parameters about GPU power usage.
ZeroCore Power Technology
The GPU shuts down to reduce power usage while it is idle.
Features
-
1792 Stream Processors
-
Polaris Architecture
-
8GB GDDR5 vRAM
-
256-Bit Memory Interface
-
160 GB/s Memory Bandwidth
-
4 x DisplayPort 1.3 Outputs
-
Maximum Resolution 5120 x 2880
-
3.9 TFLOPS Single Precision Performance
-
Blower-Style Cooler
-
PCIe 3.0 x16 Interface
