Description

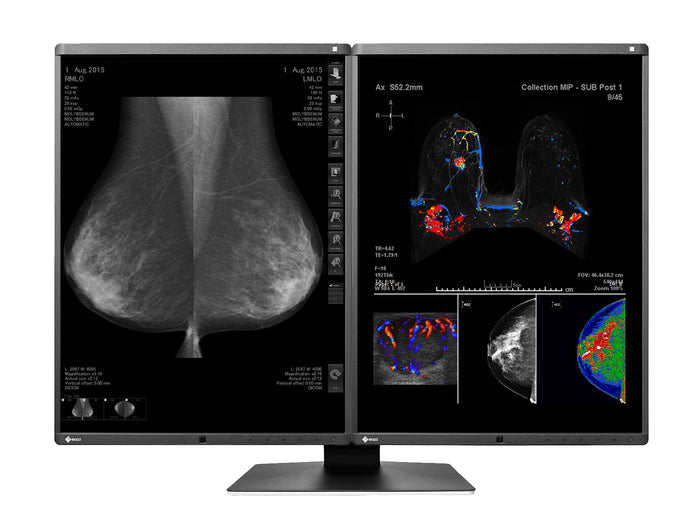

This 5-megapixel, high-bright color monitor has the high-definition display necessary for breast imaging. It combines ease of use, such as a narrow bezel design to help your eyes swiftly move from one monitor to another, with new functions to help you focus on your work and maintain high performance.
Distraction-Free Viewing
The monitor bezel is just 7.5 mm, the world's narrowest bezel on a 5-megapixel monitor, and the total distance between the visible screens of the two monitors is only 15 mm. Furthermore, the bezel sits only 2.5 mm above the screen, making an almost entirely flush bezel easily switch your view between screens.
Space Saving
The dimensions of the RX560 MammoDuo are reduced by 67 mm horizontally, 36 mm vertically, and 20.5 mm in depth compared to a conventional side-by-side configuration with a single monitor of the exact total resolution. The total space occupied by the monitors was reduced by 22%, creating a more unrestricted environment with expanded viewing space.
Easy Adjustment
With the newly designed stand, you can adjust the height, tilt, and swivel of the two monitors without any gaps between them.
Clean and Sophisticated
The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.
Evolve Your Image Reading
As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce monitor and bundled RadiCS LE software.
Quick and Easy Focus
With the Point-and-Focus function, you can quickly select and focus areas of your concern with just your mouse and keyboard. Change the brightness and grayscale tones of certain points on the screen to make interpretation easier.
Full-Color Support for Ultrasound, Breast CT, and MRI
Breast cancer screenings increasingly combine mammography and ultrasound to view patients with high breast density. Furthermore, if breast cancer is suspected, various other tests, such as biopsy, breast MRI and CT, may be needed.
The RX560 is the world's first medical monitor to use low-temperature polysilicon (LTPS) liquid crystal display. Because of this, the color monitor can reach a brightness of up to 1100 cd/m2, similar to monochrome monitors. Due to this high brightness, the RX560 can display high-definition monochrome breast tomosynthesis and mammography images with deep blacks and no washout, in addition to color images such as ultrasound and pathology.
Furthermore, it has a high contrast ratio of 1500:1, approximating that of a monochrome monitor, displaying deep blacks without any washout.
Optimum Breast Screening Monitor
The monitor has obtained FDA 510(k) clearance from the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the monitor can display detailed breast screening images where high performance is essential.
Display Both Monochrome and Color
Hybrid Gamma PXLThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale, giving it greater accuracy and reliability than the conventional area-detection method.
In addition to breast tomosynthesis and mammography monochrome images, which require high display performance, the RX560 also faithfully reproduces color images such as breast MRI and CT, ultrasound, and pathology. This ultimately improves efficiency by allowing monochrome and color images to be viewed on one screen.
EIZO conducted a visual assessment of the function in collaboration with the Federation of National Public Service Personnel Mutual Aid Association of Kumamoto Chuo Hospital, Japan. As a result of comparing monitors with the function turned on and off showed that Hybrid Gamma PXL accurately displayed monochrome images according to DICOM Part 14 and improved the accuracy of color image interpretation.
Smooth Display of Breast Tomosynthesis
The monitor has a response time of 12 milliseconds, making it ideal for enlarging and panning medical images and quickly displaying 3D breast tomosynthesis, which comprises several images in each shot.
Hassle-Free Multi-Monitor Configuration
The monitor is equipped with DisplayPort 1.2 input and output terminals. Using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.
Docs & Drivers
-
Eizo Radiforce RX560 User Manual
Manufacturer Eizo MFG. Part#. RX560-BK Screen Type Color Resolution 5MP (2048 x 2560) Pixel Pitch 0.165 x 0.165 mm Contrast Ratio 1500:1 Aspect Ratio Hv 4:5 Calibrated Luminance 500 cd/m² Max Luminance 1100 cd/m² Calibration Auto (built-in front sensor) Backlight Sensor Yes Front Sensor Yes Ambient Light Sensor Yes Backlight LED Screen Technology Color (IPS) Active Screen Size (DIAGONAL) 541 mm (21.3") Active Screen Size (H x V) 337.9 x 422.4 mm (13.30 x 16.62") Video Input Signals DisplayPort Recommended For All digital images including mammography 3D Tomosynthesis Yes Viewing Angle (H, V) 178°, 178° Mount Type VESA (100 mm) Dimensions (W x H x D) 696.5 x 519.3-609.3 x 225 mm (27.4 x 20.4-23.9 x 8.5") Power Consumption 87 W Power Requirements AC 100 - 240 V: 50 / 60 Hz Weight 17.9 lbs (8.1 kg)
