Description
Providing the Best Diagnostic Environment
Fully redesigned hardware and software bring innovation in multi-modality image reading.
Clearly Defined Diagnostic Images
The new i3 color series renders more precise color and monochrome modality images. One of its unique technologies the built-in self-calibrating sensor ensures that the monitor constantly performs at its best.
Dynamic Gamma

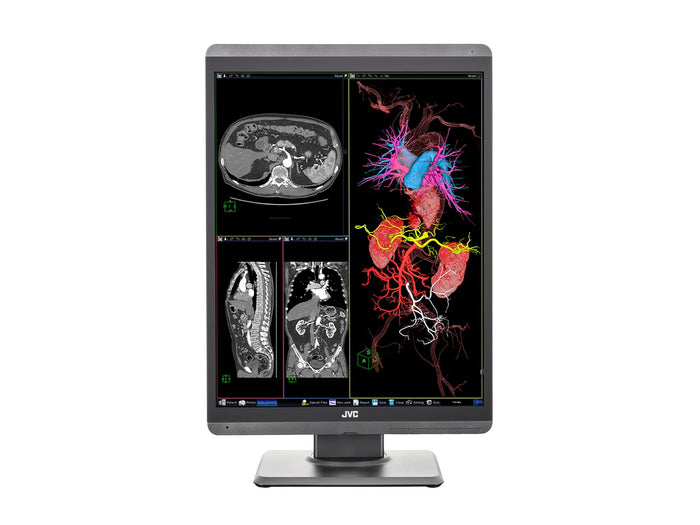

The JVC CL-S300 automatically recognizes color images to produce optimized contrast, brightness, and gamma, all without requiring user intervention.
Auto Text Mode
To reduce eye strain, brightness is automatically adjusted when viewing patient lists and reporting applications when using auto text mode.
Integrated QA Solution
Managing the daily operation of the Radiology department is now more simplified with QA Medivisor Agent’s calibration and QA standard testing capabilities, combined into an intuitive and easy-to-navigate user interface. This includes QA Medivisor Agent LE, a simplified calibration scheduling tool.
*Optional calibration kit CAL-016 is required for standard QA testing.
Self-calibration
With the integrated color front sensor, the CL-S200/CL-S300 self-calibrates to the DICOM Part 14 Standard on a regular schedule.
Razor-Sharp Color Precision
When using multiple i3 models, JVC’s unique X, Y, Z, color level tracking and color management technologies ensure your monitors perfectly color match one another.
Premium Design
A simple and slim design for a modern look.
Intuitive Design
Soft LED light indicators and front buttons create a streamlined design.
Two-tone color
The backside features a stylish gray-white tone color.
Built-in Sensor
The JVC CL-S300 includes several front sensors to efficiently adjust your monitor to fit any reading environment. An ambient light sensor offsets the effects of ambient light to ensure optimal calibration, a color front sensor stabilizes luminance and color for consistent image quality, and the human presence sensor automatically switches to power save mode when you're away.
Space Saving
Desk space is valuable, so the new design of the JVC CL-S300 stand takes up 25% less area than conventional models.
Wire Management / DisplayPort Daisy Chains
With DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.
Docs & Drivers
-
JVC CL-S300 Specification Sheet
Manufacturer JVC MFG. Part#. CL-S300 Screen Type Color Resolution 3MP (1536 x 2048) Pixel Pitch 0.2115 x 0.2115 mm Contrast Ratio 1500:1 Aspect Ratio Hv 4:3 Calibrated Luminance 500 cd/m2 Max Luminance 1000 cd/m2 Calibration Auto (built-in front sensor) Backlight Sensor Yes Front Sensor Yes Ambient Light Sensor Yes Backlight LED Screen Technology 21.3” color TFT IPS technology Active Screen Size (DIAGONAL) 541 mm (21.3") Active Screen Size (H x V) 324 mm x 433 mm (12.7 in x 17 in) Video Input Signals DisplayPort Recommended For All digital images, except digital mammography 3D Tomosynthesis No Viewing Angle (H, V) 178°, 178° Mount Type VESA (100 mm) Dimensions (W x H x D) 493 x 451.3 x 196.5 mm (19.4" x 17.7" x 7.7") Power Consumption 95 W Power Requirements 100 V - 240 V 50 / 60Hz Weight 22 lbs (10 kg)
